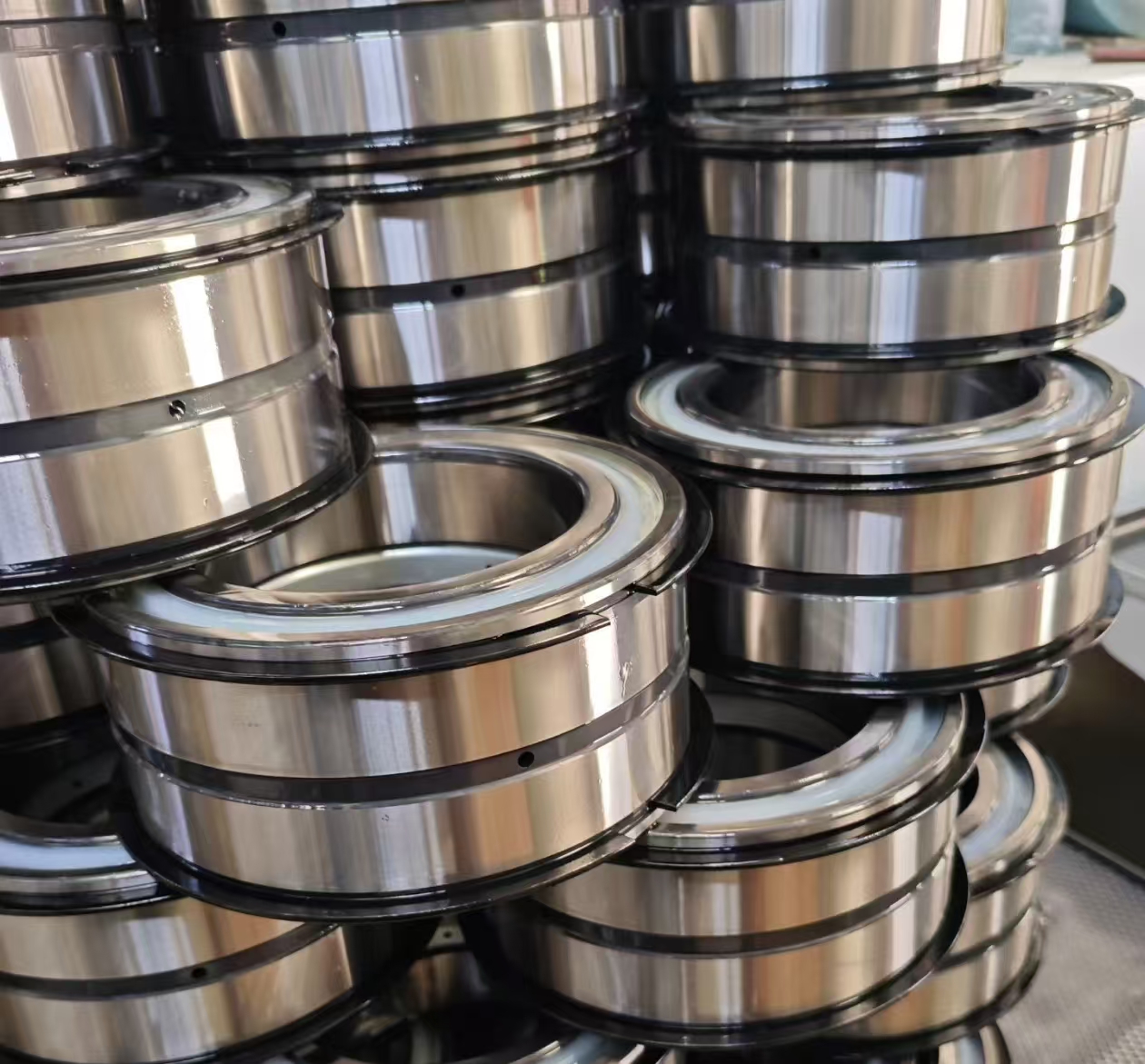

The applications of SL04 series full complement cylindrical roller bearings

The SL04 series full complement cylindrical roller bearings are designed for extremely high radial load capacity in a compact cross-section. Its primary application is in scenarios where space is limited, and the primary load is pure radial, but where standard caged bearings would be too weak or have too short a service life.

1. Key Design Features of the SL04 Series

To understand its applications, it’s crucial to first understand its design:

Full Complement: This is the most important feature. Unlike standard bearings that use a cage to separate the rollers, “full complement” means the bearing is packed with the maximum number of rollers possible. There is no cage.
High Radial Load Capacity: By eliminating the cage, the bearing can accommodate more rollers, significantly increasing its load-carrying capacity—often by 20-40% compared to a caged version of the same size.
Compact Cross-Section: The SL04 series is part of a “light” or “thin” series. This means its cross-sectional height (the difference between its outer diameter and bore diameter) is smaller than a standard “medium” series bearing. This allows it to fit into compact, weight-sensitive designs.
Limitation: Lower Speed Capability: The lack of a cage is also its main drawback. Without a cage to guide and separate them, the rollers rub against each other during operation, generating significant friction and heat. Therefore, SL04 bearings are not suitable for high-speed applications.

2. Typical Applications

The combination of high load + compact size + low-to-moderate speed makes the SL04 series ideal for the following applications:

1. Gearboxes and Transmissions
This is one of the most common uses.
Location: Often used as planet gear bearings in planetary gearboxes or as support bearings for slow-speed shafts.
Reasoning: Gearboxes, especially in heavy machinery, experience massive radial forces from the meshing of gears. The compact size of the SL04 allows for a more compact gearbox design while handling these high loads. The rotational speeds of the supported components are often low enough to be acceptable for a full complement bearing.

2. Heavy-Duty Machinery and Equipment
Examples: Construction equipment (excavators, cranes), mining machinery, rolling mills, vibratory screens.
Reasoning: These machines are designed to withstand immense loads. Bearings in pivot points, idler wheels, and conveyor pulleys are subjected to severe radial loads but may not rotate very quickly. The SL04’s high load capacity is perfect for this harsh environment.

3. Agricultural Machinery
Examples: Tractors, combines, balers, and other harvesting equipment.
Reasoning: Similar to construction equipment, agricultural machinery requires robust components that can handle shock loads and high radial forces in dirty environments. The simplicity and strength of the SL04 make it a reliable choice.

4. Electric Motors and Generators (Specific Cases)
Usage: Typically used in large, slow-speed motors and generators (e.g., hydroelectric generators, large wind turbine main shafts in some designs).
Reasoning: For very large diameter shafts, the surface speed can be high, but the rotational speed (RPM) is low. The SL04 can support the tremendous weight of the rotor (radial load) effectively at these low RPMs.

5. Material Handling Systems
Examples: Conveyor system rollers, pulley bearings in heavy-load conveying systems.
Reasoning: These bearings support the radial load of the carried material and the belt tension. Speed is typically low, making the SL04 a durable and long-lasting option.

3. Critical Design and Maintenance Considerations

If you are specifying or maintaining an SL04 bearing, pay close attention to these points:

1. Lubrication is CRITICAL: The roller-to-roller contact creates friction that must be managed. A high-quality, high-viscosity lubricant is essential. Grease lubrication is common, but oil lubrication or oil mist systems are often used for better heat dissipation. The lubrication must be continuous and reliable.
2. Misalignment: Like all cylindrical roller bearings, the SL04 series is sensitive to misalignment. The mating shafts and housings must be aligned precisely to prevent edge loading and premature failure.
3. Load Direction: Remember, these are purely radial bearings. They must not be used to support significant axial loads. Any axial load must be handled by a separate thrust bearing in the system.
4. Installation: Care must be taken during installation to avoid damaging the rollers or the raceways, as the rollers are not held in place by a cage.
