Track Roller Bearings

Track roller bearings are essentially cylindrical roller or needle roller bearings which have a thick-walled outer race.

Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and are suitable for cam drives, slideways, conveying equipment etc.

The bearing outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where there is misalignment in relation to the raceway and edge stresses must be avoided. The bearings are available with or without an inner ring as well as in open and sealed versions.

Yoke Type Track Rollers - NUTR Series

Yoke Type Track Rollers – NUTR Series

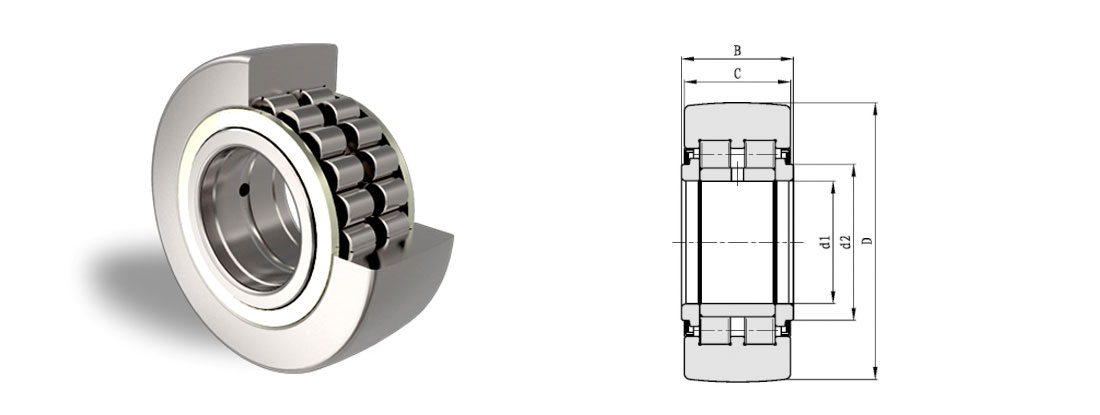

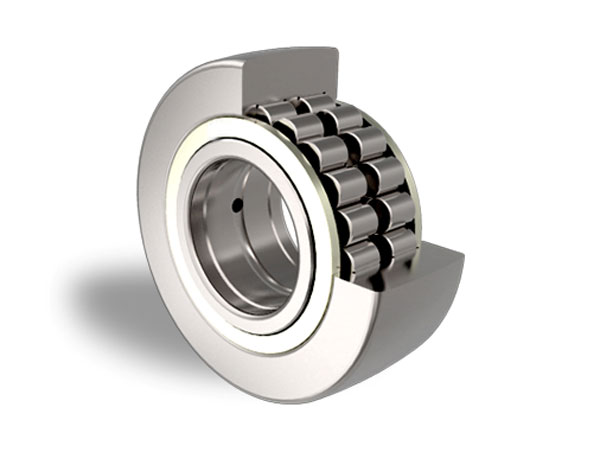

Yoke Type Track Rollers - PWTR Series

Yoke Type Track Rollers – PWTR Series

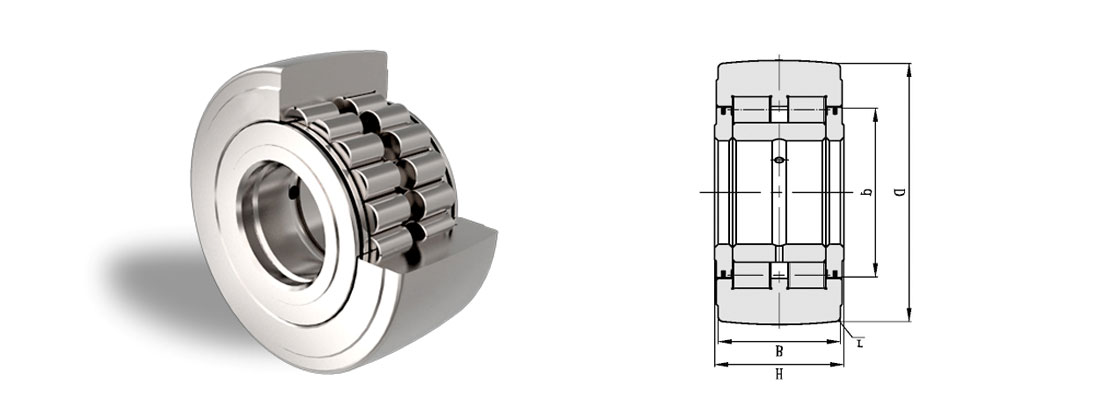

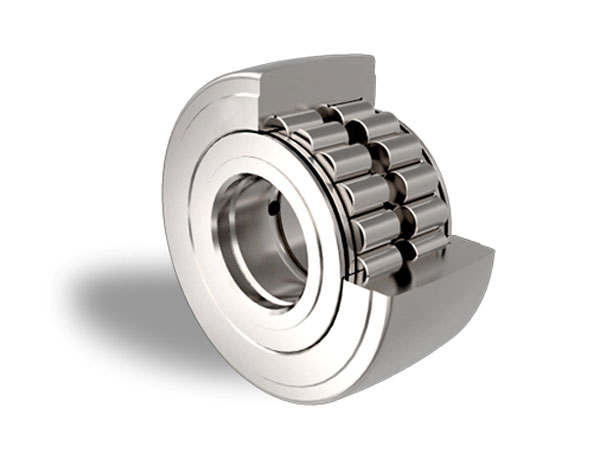

Yoke Type Track Rollers - RSU Series

Yoke Type Track Rollers – RSU Series

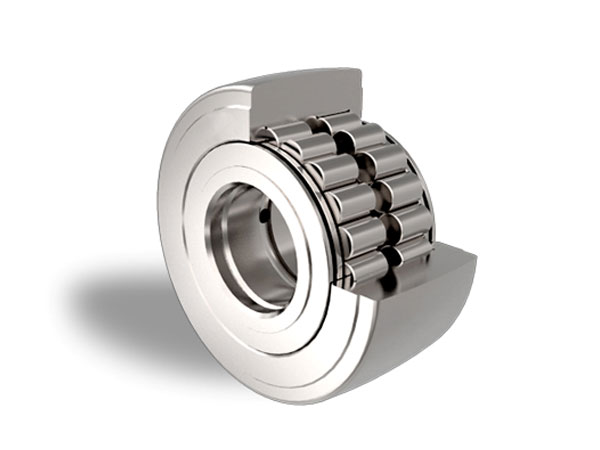

Yoke Type Track Rollers – NNTR Series

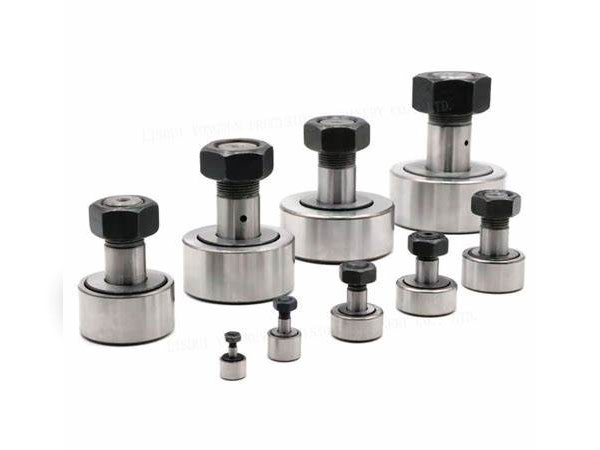

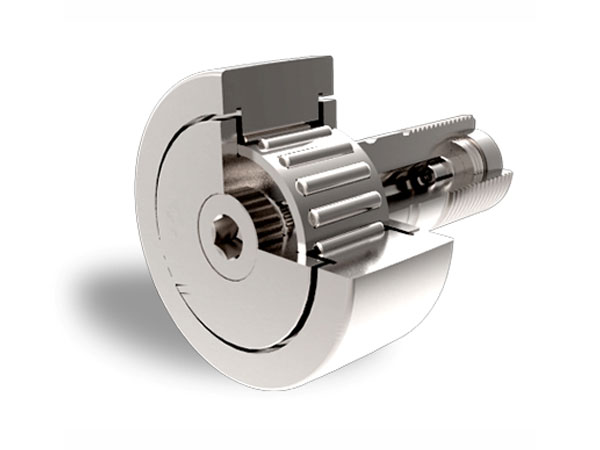

Stud Type Track Roller Bearings/Cam Followers

Stud Type Track Roller Bearings/Cam Followers

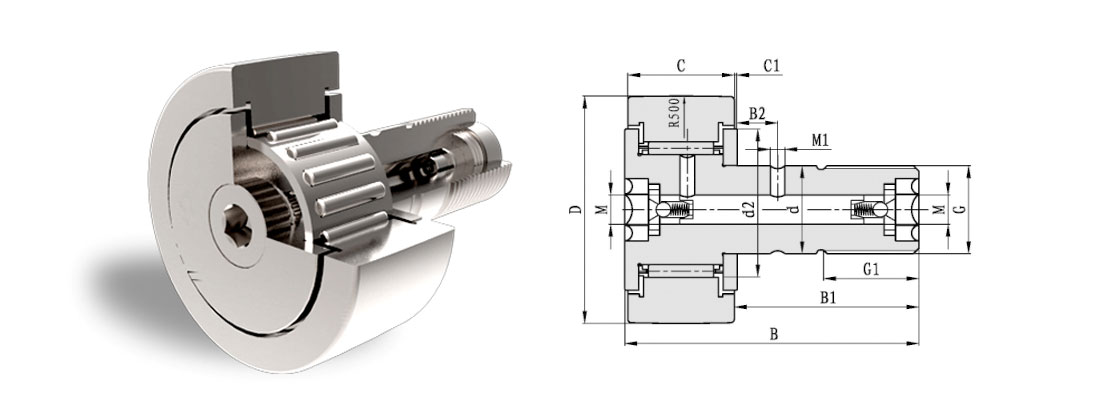

Stud Type Track Roller Bearings/Cam Followers KR Series

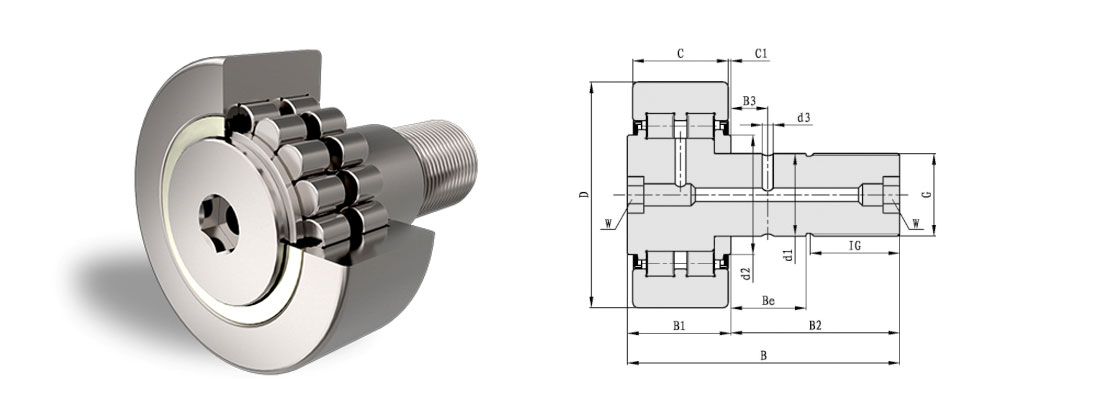

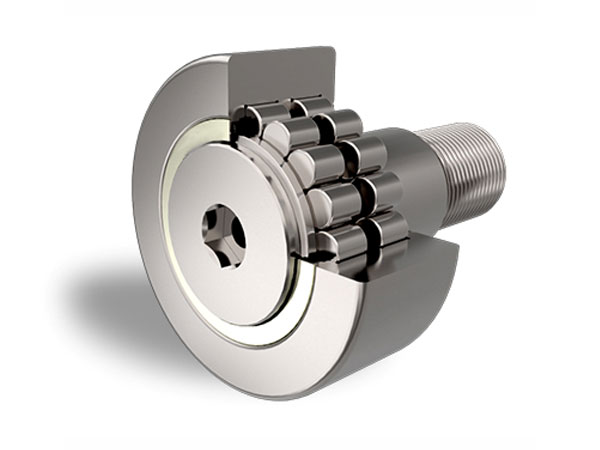

Stud Type Track Roller Bearings/Cam Followers NUKR Series

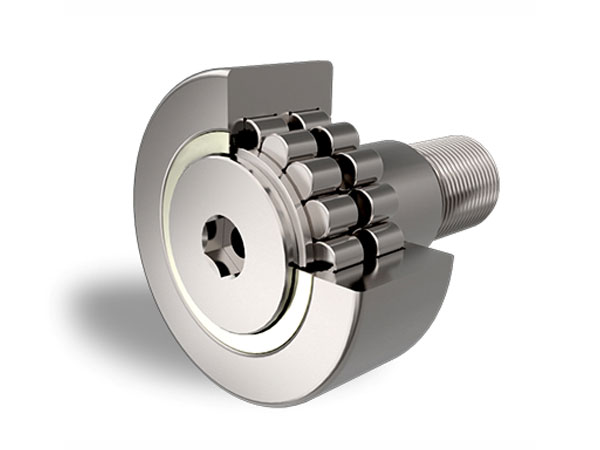

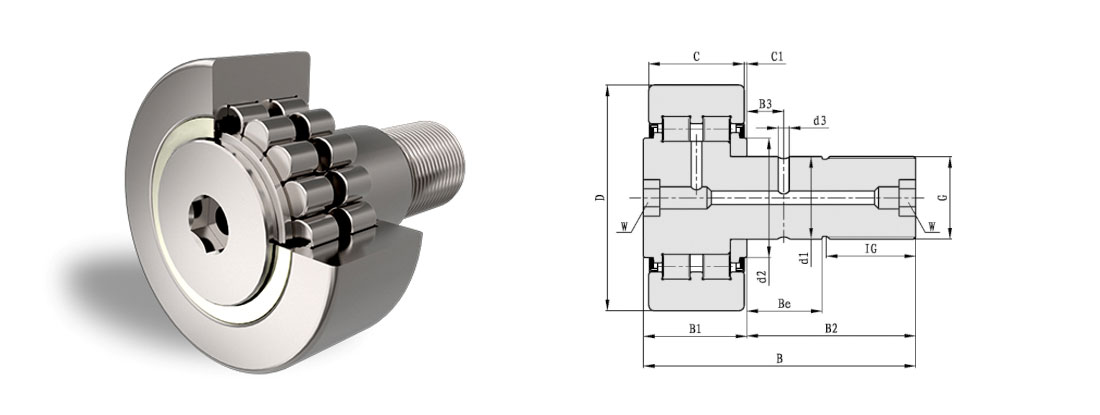

Stud Type Track Roller Bearings/Cam Followers PWKR Series

Send E-mail Request Quote

Product Parameter

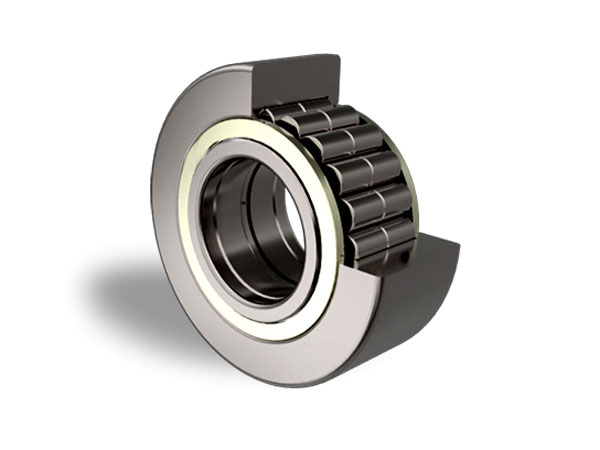

Yoke Type Track Rollers – NUTR Series

Yoke Type Track Rollers - NUTR Series

The internal design layout of the non-separable NUTR yoke type track rollers is similar to that of double row cylindrical roller bearings.

Since the outer ring has two shoulders these yoke type track rollers can accept greater thrust loads.

The loose ribs of these types are retained by cupped pressed steel washers press-fitted into the outer ring. These pressed steel washers also act as a gap seal.

NUTR yoke type track roller feature optimum load rating due to their complement design but require frequent re-lubrication.

For extra heavy duty applications where heavy shock loads occurs NUTR yoke type track rollers are available with an extra-radially thick walled outer ring.

 Type Dimensions(mm) Basic Load Rating(KN) Limiting Mass
Speed
d D B C Cr Cor (rpm) g
Dynamic Static Grease
NUTR15 15 35 19 18 20500 24500 6500 99
NUTR17 17 40 21 20 21800 28500 5500 147
NUTR1542 15 42 19 18 20500 24500 6500 158
NUTR1747 17 47 21 20 21800 28500 5500 220
NUTR20 20 47 25 24 36900 48900 4200 245
NUTR2052 20 52 25 24 36900 48900 4200 321
NUTR25 25 52 25 24 40800 58500 3400 281
NUTR2562 25 62 25 24 40800 58500 3400 450
NUTR30 30 62 29 28 56800 77500 2600 465
NUTR3072 30 72 29 28 56800 77500 2600 697
NUTR35 35 72 29 28 63000 91000 2100 630
NUTR3580 35 80 29 28 63000 91000 2100 836
NUTR40 40 80 32 30 87900 108000 1600 816
NUTR45 45 85 32 30 93600 119000 1400 883
NUTR4090 40 90 32 30 87900 108000 1600 1129
NUTR50 50 90 32 30 98900 140000 1300 950
NUTR45100 45 100 32 30 93600 119000 1400 1396
NUTR50110 50 110 32 30 98900 140000 1300 1690
