Product Parameter

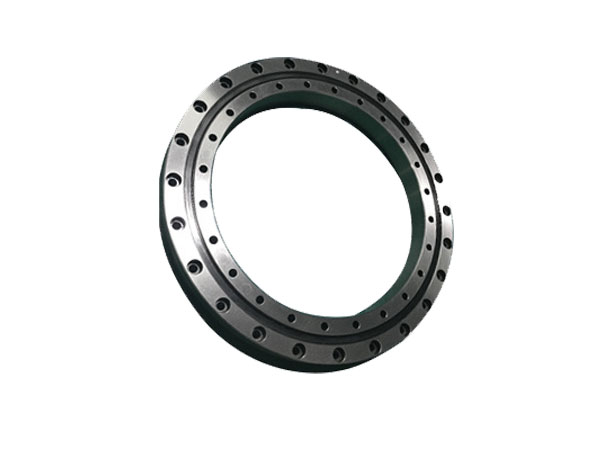

XU Series

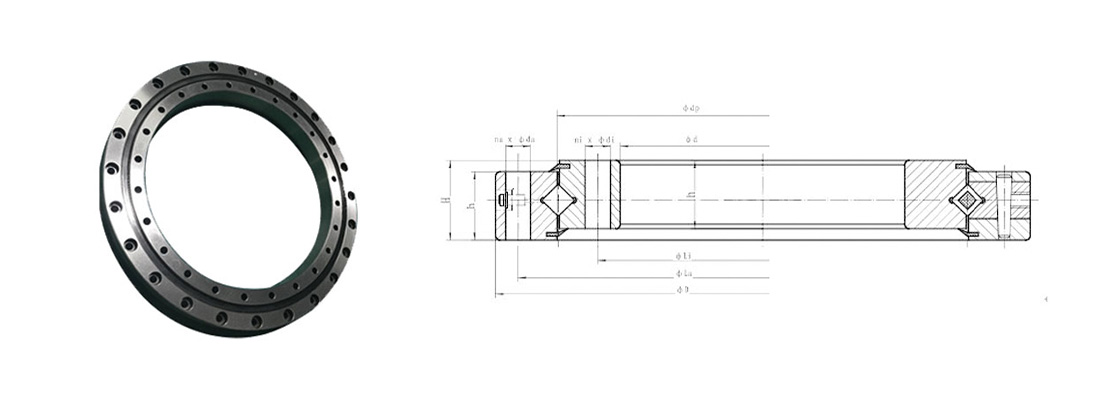

XU Series Cross Roller Slewing bearing

Bearing Type	Dimensions								Basic Load Rating (axial)		Basic Load Rating (Radial)		Weight
	Inner Ring	Outer Ring	Roller Pitch Diameter	Height	Center hole of outer ring	Mounting hole	Center hole of inner ring	Mounting hole	Ca	Coa	Cr	Cor
	(mm)	(mm)	(mm)	(mm)	φLa	na	φLa	ni	Ca	Coa	Cr	Cor
	d	D	Dpw	H					KN	KN	KN	KN	kg
XU050077	40	112	77	22	97	6-φ6.6	56	6-M8	22.4	29	14.3	14.2	1.4
XU060094	57	140	94	26	120	6-φ9	70	6-M8	32.5	37.5	20.7	18.4	2.4
XU060111	76.2	145.79	111	15.87	133.1	8-φ6.9	88.9	8-φ6.9	36	44.5	22.8	21.5	1.2
XU080120	69	170	120	30	148	6-φ9	90	6-M8	56	53	35.5	26	4
XU080149	101.6	196.85	149.6	22.22	177.8	16-φ6.9	115.8	16-φ6.9	63	66	40	32.5	3.6
XU120179	124.5	234	179	35	214	12-φ11	144.5	12-φ11	118	179	75	88	7
XU120222	140	300	222	36	270	12-M16	170	12-φ18	133	275	85	131	12
XU160260	191	329	260	46	305	20-φ14	215	20-φ14	212	350	135	173	16
XU080264	215.9	311	264	25.4	295.3	12-φ8.7	231.8	12-φ8.7	85	117	54	57	6.9
XU160405	336	474	405	46	450	30-φ14	360	30-φ14	270	550	172	270	25
XU080430	380	480	430	26	462	20-φ9	398	20-M10	110	280	70	138	12
XU300515	384	646	515	86	598	18-φ26	432	18-φ26	720	1370	455	670	115

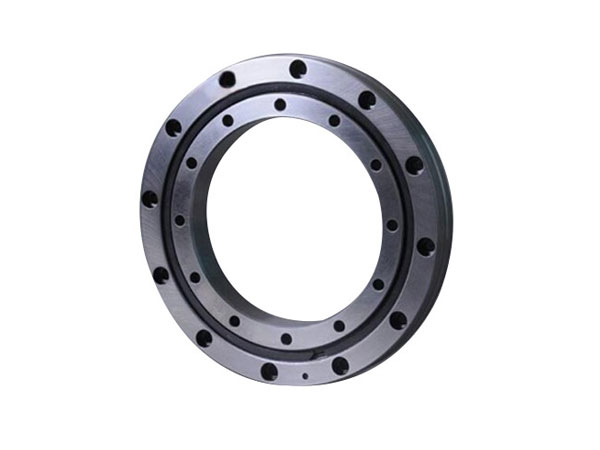

XSU Series

XSU Series Cross Roller Slewing bearing

(Integrated Inner/Outer Ring Type)
CNC machine tool bearings

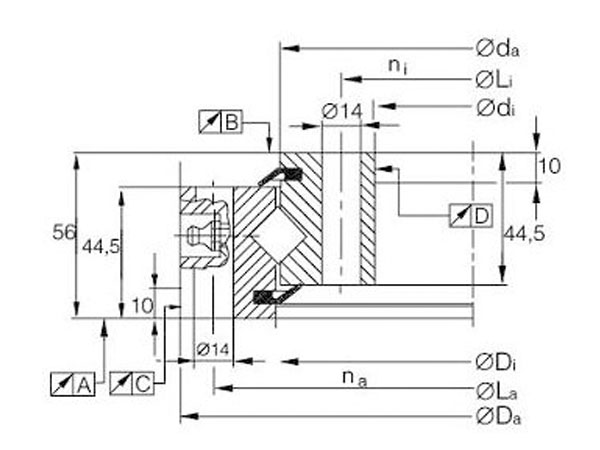

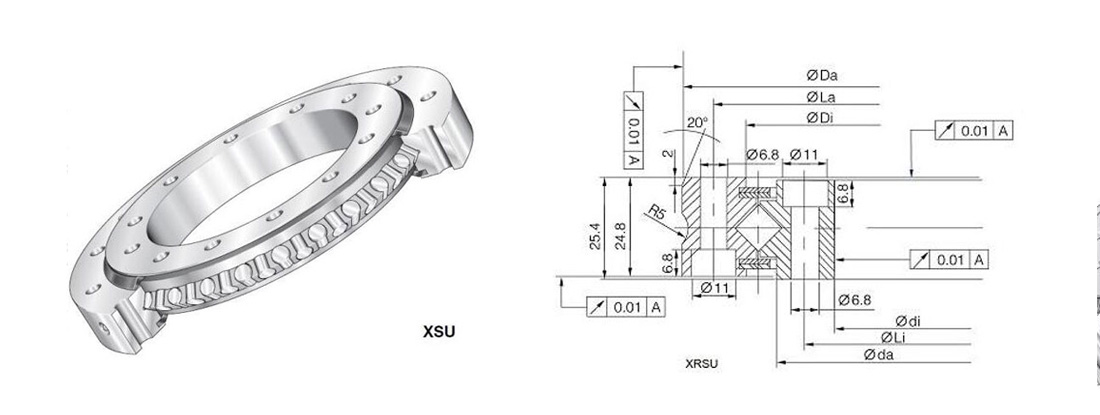

XSU Series Cross Roller Slewing bearing

Bearing type	Main dimensions					Basic load rating（axial）		Basic load rating (radial）		Limiting speed	weight
	inner ring	outer ring	width	Installation holes	chamfer	Ca	C0a	Cr	Cor
					(mm)

	d	D	B	na	r	kN	kN	kN	kN	r/min	Kg
XSU080168	130	205	25.4	12	1.1	66	240	42	96	227	3.3
XSU080188	150	225	25.4	16	1.1	71	275	46	110	203	3.7
XSU080218	180	225	25.4	20	1.1	77	315	49	127	175	4.3
XSU080258	220	295	25.4	24	1.5	84	375	54	151	148	5.1
XSU080318	280	355	25.4	28	1.5	93	465	59	185	120	6.3
XSU080398	360	435	25.4	36	2	106	590	68	236	96	7.8

Bearing type	shaft diameter	Main dimensions				Basic load rating（axial）		Basic load rating (radial）		Limiting speed	weight
		inner ring	outer ring	width	Mounting holes	Ca	Coa	Cr	C0r	Limiting speed	weight
		d	D	B	na	kN	kN	kN	kN	r/min	Kg
XSU140414	344	344	484	56	24	2	229	1901/6/3	146	250	28
XSU140544	474	474	614	56	32	2.5	270	1901/11/10	170	330	38
XSU140644	574	574	714	56	36	2.5	290	1902/3/10	185	395	44
XSU140744	674	674	814	56	40	3	315	1902/7/18	200	455	52
XSU140844	774	744	914	56	40	3	340	1902/11/15	215	510	60
XSU140944	874	874	1014	56	44	360	360	1903/3/15	227	580	67

Product Features

Since the mounting holes are provided, this model does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure. This model can be used for both inner-ring rotation and outer-ring rotation.

Series Introduction

XSU special type is a bearing with integrated inner and outer ring. It is used in cases where high rotational accuracy of both the inner- and outer rings is required.

Applications

Industrial Robotic arm, Reducer drive
Precision Turntable, CNC rotary table
Rotation part of Machine tools
Inspection instrument, Medical equipment
Aviation equipment, Military radar etc

SX Series

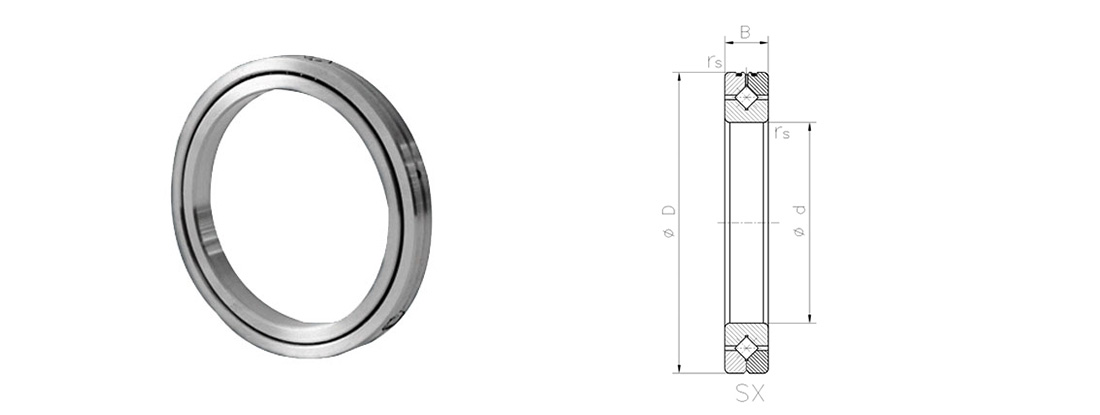

SX Series Cross Roller Bearing

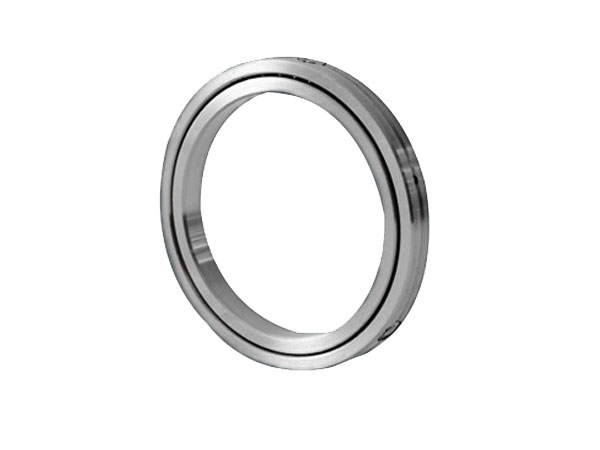

SX series cross roller bearing

Bearing Type	Dimension						Basic Load Rating (Axial)		Basic Load Rating(Radial)		Weight
	Dimension						Basic Load Rating (Axial)		Basic Load Rating(Radial)
	Inner Ring	Outer Ring	Roller Pitch Diameter	Width	Oil Holes	r	Ca	Coa	Cr	COr
	d	D	Dpw	B B1	S	min	kN	kN	kN	kN	Kg
SX011814	70	90	80	10	1.2	0.6	18	60	12	30	0.3
SX011818	90	115	102	13	1.2	1	26	96	17	47	0.4
SX011820	100	125	112	13	1.2	1	28	106	18	52	0.5
SX011824	120	150	135	16	1.5	1	41	153	26	75	0.8
SX011828	140	175	157	18	1.5	1.1	64	237	41	116	1.1
SX011832	160	200	180	20	1.5	1.1	69	272	44	133	1.7
SX011836	180	225	202	22	2	1.1	98	381	63	187	2.3
SX011840	200	250	225	24	2	1.5	106	425	68	208	3.1
SX011848	240	300	270	28	2	2	149	612	95	300	5.3
SX011860	300	380	340	38	2.5	2.1	245	1027	156	504	12
SX011868	340	420	380	38	2.5	2.1	265	1148	167	563	13.5
SX011880	400	500	450	46	2.5	2.5	385	1699	244	833	24
SX0118/500	500	620	560	56	2.5	3	260	2538	355	1244	44

Product Features

The structure of SX series crossed roller bearings is similar to RB series, the outer ring is separable and connected with three locating rings. While the inner ring is integrated with the main body. This model is used for occasions where the rotation accuracy of the outer ring is required.

Series Introduction

SX standard type is a bearing similar to RB standard type. The two separable outer rings are connected by locking ring.

Applications

Industrial Robotic arm, Reducer drive
Precision Turntable, CNC rotary table
Rotation part of Machine tools
Inspection instrument, Medical equipment
Aviation equipment, Military radar etc

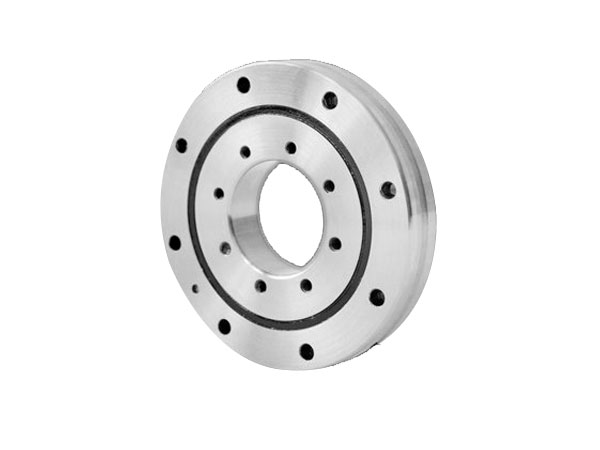

RU Series

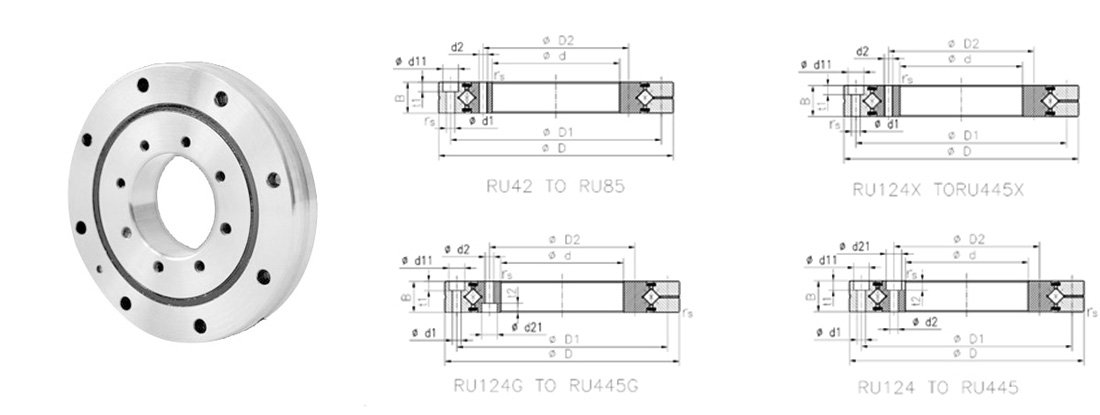

RU Series Crossed Roller Slewing Bearing

RU-series Cross roller bearing used for CNC machine tools and Robotic Arm.

RU Series Crossed Roller Slewing Bearing

Bearing Type	Dimension					Shoulder Height		Basic Load Rating		Weight

	Inner Ring	Outer Ring	Roller Pitch Diameter	Height	Chamfer			（Radial）
								Cr	Cor
	d	D	Dpw	B	rmin	ds	Dh	kN	kN	kg
RU 42	20	70	41.5	12	0.6	37	47	7.35	8.35	0.29
RU 66	35	95	66	15	0.6	59	74	17.5	22.3	0.62
RU 85	55	120	85	15	0.6	79	93	20.3	29.5	1
RU 124(G)	80	165	124	22	1	114	134	33.1	50.9	2.6
RU 124X
RU 148(G)	90	210	147.5	25	1.5	133	162	49.1	76.8	4.9
RU 148X
RU 178(G)	115	240	178	28	1.5	161	195	80.3	135	6.8
RU 178X
RU 228(G)	160	295	227.5	35	2	208	246	104	173	11.4
RU 228X
RU 297(G)	210	380	297.5	40	2.5	272	320	156	281	21.3
RU 297X
RU 445(G)	350	540	445.4	45	2.5	417	473	222	473	35.4
RU 445X

Product Features

LYSYM Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

RU special type is a bearing with integrated inner- and outer ring. It is used in cases where high rotational accuracy of both the inner- and outer rings is required.

Applications

Industrial Robotic arm, Reducer drive
Precision Turntable, CNC rotary table
Rotation part of Machine tools
Inspection instrument, Medical equipment
Aviation equipment, Military radar etc

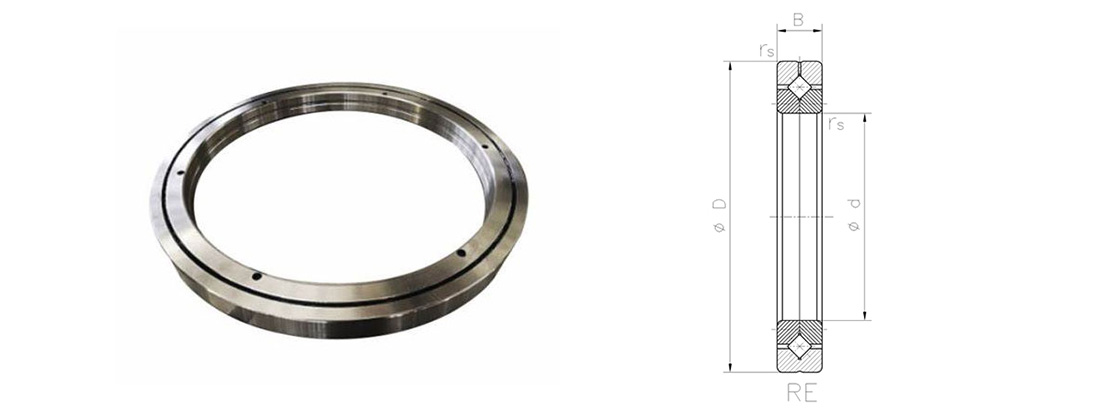

RE Series

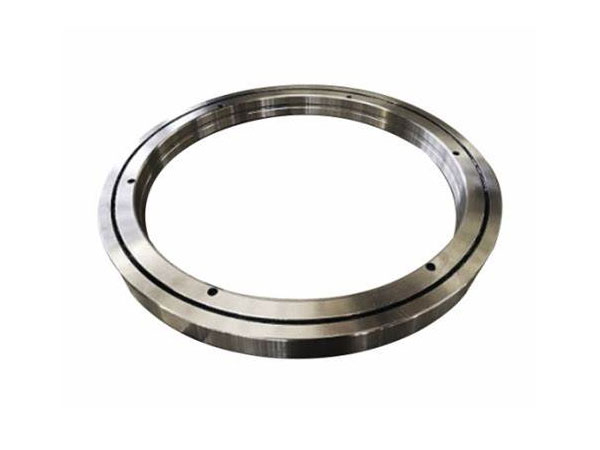

RE Series Crossed Roller Slewing Bearing

(Separable Inner Ring, Type for Outer Ring Rotation)

RE Series Crossed roller Slewing bearing

Bearing Type	Dimension					Shoulder Height		Basic Load Rating (Radial)		Weight
Bearing Type	Inner Ring	Outer Ring	Roller Pitch Diameter	Height	Chamfer	Shoulder Height		Cr	Cor	Weight
	d	D	Dpw	B B1	rmin	ds	Dh	kN	kN	kg
RE 2008	20	36	29	8	0.5	23.5	30.5	3.23	3.1	0.04
RE 2508	25	41	34	8	0.5	28.5	35.5	3.63	3.83	0.05
RE 3010	30	55	43.5	10	0.6	37	47	7.35	8.36	0.12
RE3510	35	60	48.5	10	0.6	41	51.5	7.64	9.12	0.13
RE 4010	40	65	53.5	10	0.6	47.5	58	8.33	10.6	0.16
RE 4510	45	70	58.5	10	0.6	51	61.5	8.62	11.3	0.17
RE 5013	50	80	66	13	0.6	57.5	72	16.7	20.9	0.27
RE 6013	60	90	76	13	0.6	68	82	18	24.3	0.3
RE 7013	70	100	86	13	0.6	78	92	19.4	27.7	0.35
RE 8016	80	120	101.4	16	0.6	91	111	30.1	42.1	0.7
RE 9016	90	130	112	16	1	98	118	31.4	45.3	0.75
RE 10016	100	140	121.1	16	1	109	129	31.7	48.6	0.83
RE 10020	100	150	127	20	1	113	133	33.1	50.9	1.45
RE 11012	110	135	123.3	12	0.6	117	127	12.5	24.1	0.4
RE 11015	110	145	129	15	0.6	122	136	23.7	41.5	0.75
RE 11020	110	160	137	20	1	120	140	34	54	1.56
RE 12016	120	150	136	16	0.6	127	141	24.2	43.2	0.72
RE 12025	120	180	152	25	1.5	133	164	66.9	100	2.62
RE 13015	130	160	146	15	0.6	137	152	25	46.7	0.72
RE 13025	130	190	162	25	1.5	143	174	69.5	107	2.82
RE 14016	140	175	160	16	1	147	162	25.9	50.1	1
RE 14025	140	200	172	25	1.5	154	185	74.8	121	2.96
RE 15013	150	180	166	13	0.6	158	172	27	53.5	0.68
RE 15025	150	210	182	25	1.5	164	194	76.8	128	3.16
RE 15030	150	230	192	30	1.5	173	210	100	156	5.3
RE 16025	160	220	192	25	1.5	173	204	81.7	135	3.14
RE 17020	170	220	196.1	20	1.5	184	198	29	62.1	2.21
RE 18025	180	240	210	25	1.5	195	225	84	143	3.44
RE 19025	190	240	219	25	1	202	222	41.7	82.9	2.99
RE 20025	200	260	230	25	2	215	245	84.2	157	4
RE 20030	200	280	240	30	2	221	258	114	200	6.7
RE 20035	200	295	247.7	35	2	225	270	151	252	9.6
RE 22025	220	280	250.1	25	2	235	265	92.3	171	4.1
RE 24025	240	300	272.5	25	2.5	256	281	68.3	145	4.5
RE 25025	250	310	280.9	25	2.5	268	293	69.3	150	5
RE 25030	250	330	287.5	30	2.5	269	306	126	244	8.1
RE 25040	250	355	300.7	40	2.5	275	326	195	348	14.8
RE 30025	300	360	332	25	2.5	319	344	75.5	178	5.9
RE 30035	300	395	345	35	2.5	322	368	183	367	13.4
RE 30040	300	405	351.6	40	2.5	326	377	212	409	17.2
RE 35020	350	400	376.6	20	2.5	363	383	54.1	143	3.9
RE 40035	400	480	440.3	35	2.5	422	459	156	370	14.5
RE 40040	400	510	453.4	40	2.5	428	479	241	531	23.5
RE 45025	450	500	476.6	25	1	464	484	61.7	182	6.6
RE 50025	500	550	526.6	25	1	514	534	65.5	201	7.3
RE 50040	500	600	548.8	40	2.5	526	572	239	607	26
RE 50050	500	625	561.6	50	2.5	536	587	267	653	41.7
RE 60040	600	700	650	40	3	627	673	264	721	29

Series Introduction

RE standard type is an innovative bearing based on the design of the RB standard type bearing. The inner ring is separable while the outer ring is integrated into the main body. It is used in cases where the high rotational accuracy of the outer ring is required.

Applications

Industrial Robotic arm, Reducer drive
Precision Turntable, CNC rotary table
Rotation part of Machine tools
Inspection instrument, Medical equipment
Aviation equipment, Military radar, etc

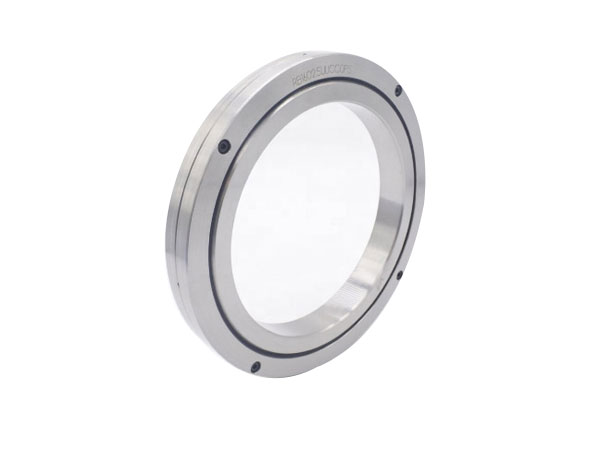

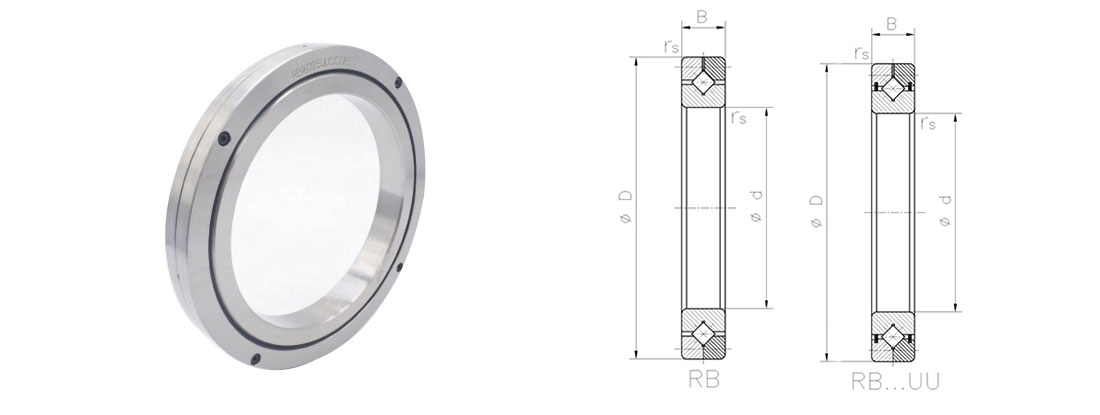

RB Series

RB Series Crossed Roller Bearing

(Separable Outer Ring, Type for Inner Ring Rotation)

RB Series Crossed Roller Bearing

Bearing Type	Dimension					Shoulder Height		Basic Load Rating （Radial）		Weight
	Inner Ring	Outer Ring	Roller Pitch Diameter	Height	Chamfer			Cr	Cor
	Inner Ring	Outer Ring	Roller Pitch Diameter	Height	Chamfer			Cr	Cor
	d	D	Dpw	B B1	rmin	ds	Dh	kN	kN	kg
RB2008	20	36	27	8	0.5	23.5	30.5	3.23	3.1	0.04
RB2508	25	41	32	8	0.5	28.5	35.5	3.63	3.83	0.05
RB 3010	30	55	41.5	10	0.6	37	47	7.35	8.36	0.12
RB 3510	35	60	46.5	10	0.6	41	51.5	7.64	9.12	0.13
RB 4010	40	65	51.5	10	0.6	47.5	57.5	8.33	10.6	0.16
RB 4510	45	70	56.5	10	0.6	51	61.5	8.62	11.3	0.17
RB 5013	50	80	64	13	0.6	57.4	72	16.7	20.9	0.27
RB 6013	60	90	74	13	0.6	68	82	18	24.3	0.3
RB 7013	70	100	84	13	0.6	78	92	19.4	27.7	0.35
RB 8016	80	120	98	16	0.6	91	111	30.1	42.1	0.7
RB 9016	90	130	108	16	1	98	118	31.4	45.3	0.75
RB 10016	100	140	119.3	16	1	109	129	31.7	48.6	0.83
RB 10020	100	150	123	20	1	113	133	33.1	50.9	1.45
RB 11012	110	135	121.8	12	0.6	117	127	12.5	24.1	0.4
RB 11015	110	145	126.5	15	0.6	122	136	23.7	41.5	0.75
RB 11020	110	160	133	20	1	120	143	34	54	1.56
RB 12016	120	150	134.2	16	0.6	127	141	24.2	43.2	0.72
RB 12025	120	180	148.7	25	1.5	133	164	66.9	100	2.62
RB 13015	130	160	144.5	15	0.6	137	152	25	46.7	0.72
RB 13025	130	190	158	25	1.5	143	174	69.5	107	2.82
RB 14016	140	175	160	16	1	147	162	25.9	50.1	1
RB 14025	140	200	172	25	1.5	154	185	74.8	121	2.96
RB 15013	150	180	166	13	0.6	157	172	27	53.5	0.68
RB 15025	150	210	182	25	1.5	164	194	76.8	128	3.16
RB 15030	150	230	192	30	1.5	173	211	100	156	5.3
RB 16025	160	220	192	25	1.5	173	204	81.7	135	3.14
RB 17020	170	220	196.1	20	1.5	184	198	29	62.1	2.21
RB 18025	180	240	210	25	1.5	195	225	84	143	3.44
RB 19025	190	240	219	25	1	202	222	41.7	82.9	2.99
RB 20025	200	260	230	25	2	215	245	84.2	157	4
RB 20030	200	280	240	30	2	221	258	114	200	6.7
RB 20035	200	295	247.7	35	2	225	270	151	252	9.6
RB 22025	220	280	250.1	25	2	235	265	92.3	171	4.1
RB 24025	240	300	272.5	25	2.5	256	281	68.3	145	4.5
RB 25025	250	310	280.9	25	2.5	265	290	69.3	150	5
RB 25030	250	330	287.5	30	2.5	269	306	126	244	8.1
RB 25040	250	355	300.7	40	2.5	275	326	195	348	14.8
RB 30025	300	360	332	25	2.5	315	340	76.3	178	5.9
RB 30035	300	395	345	35	2.5	322	368	183	367	13.4
RB 30040	300	405	351.6	40	2.5	326	377	212	409	17.2
RB 35020	350	400	376.6	20	2.5	363	383	54.1	143	3.9
RB 40035	400	480	440.3	35	2.5	422	459	156	370	14.5
RB 40040	400	510	453.4	40	2.5	428	479	241	531	23.5
RB 45025	450	500	476.6	25	1	464	484	61.7	182	6.6
RB 50025	500	550	526.6	25	1	514	534	65.5	201	7.3
RB 50040	500	600	548.8	40	2.5	526	572	239	607	26
RB 50050	500	625	561.6	50	2.5	536	587	267	653	41.7
RB 60040	600	700	650	40	3	627	673	264	721	29
RB 70045	700	815	753.5	45	3	731	777	281	836	46
RB 80070	800	950	868.1	70	4	836	900	468	1330	105
RB 90070	900	1050	969	70	4	937	1001	494	1490	120
RB 1000110	1000	1250	1114	110	5	1057	1171	1220	3220	360
RB 1250100	1250	1500	1365.8	110	5	1308	1423	1350	3970	440

Product Features

LYSYM Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

RB standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.

Applications

Industrial Robotic arm, Reducer drive
Precision Turntable, CNC rotary table
Rotation part of machine tools
Inspection instrument, Medical equipment
Aviation equipment, Military radar, etc

RA Series

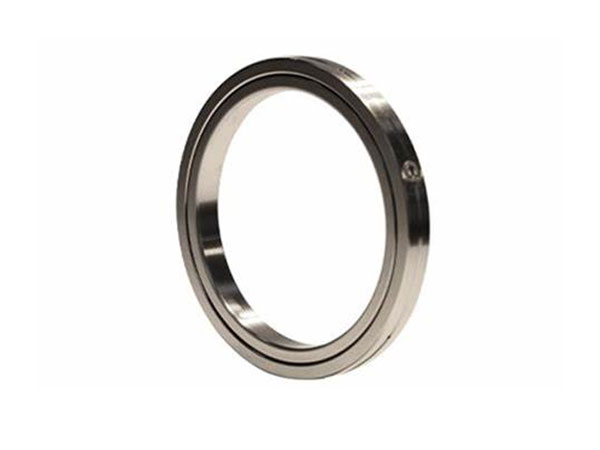

RA Series Cross Roller Bearing

(Separable Outer Ring Type for Inner Ring Rotation)

RA series Cross roller bearing

Bearing Type	Dimension					Shoulder Height		Basic Load Rating (Radial)		Weight
	Dimension							Basic Load Rating (Radial)
	Inner Ring	Outer Ring	Roller Pitch Diameter	Height	Chamfer			Cr	Cor
	d	D	Dpw	B B1	rmin	ds	Dh	kN	kN	kg
RA 5008	50	66	57	8	0.5	53.5	60.5	5.1	7.19	0.08
RA 6008	60	76	67	8	0.5	63.5	70.5	5.68	8.68	0.09
RA 7008	70	86	77	8	0.5	73.5	80.5	5.98	9.8	0.1
RA 8008	80	96	87	8	0.5	83.5	90.5	6.37	11.3	0.11
RA 9008	90	106	97	8	0.5	93.5	100.5	6.76	12.4	0.12
RA 10008	100	116	107	8	0.5	103.5	110.5	7.15	13.9	0.14
RA 11008	110	126	117	8	0.5	113.5	120.5	7.45	15	0.15
RA 12008	120	136	127	8	0.5	123.5	130.5	7.84	16.5	0.17
RA 13008	130	146	137	8	0.5	133.5	140.5	7.94	17.6	0.18
RA 14008	140	156	147	8	0.5	143.5	150.5	8.33	19.1	0.19
RA 15008	150	166	157	8	0.5	153.5	160.5	8.82	20.6	0.2
RA 16013	160	186	172	13	0.8	165	179	23.3	44.9	0.59
RA 17013	170	196	182	13	0.8	175	189	23.5	46.5	0.64
RA 18013	180	206	192	13	0.8	185	199	24.5	49.8	0.68
RA 19013	190	216	202	13	0.8	195	209	24.9	51.5	0.69
RA 20013	200	226	212	13	0.8	205	219	25.8	54.7	0.71

Product Features

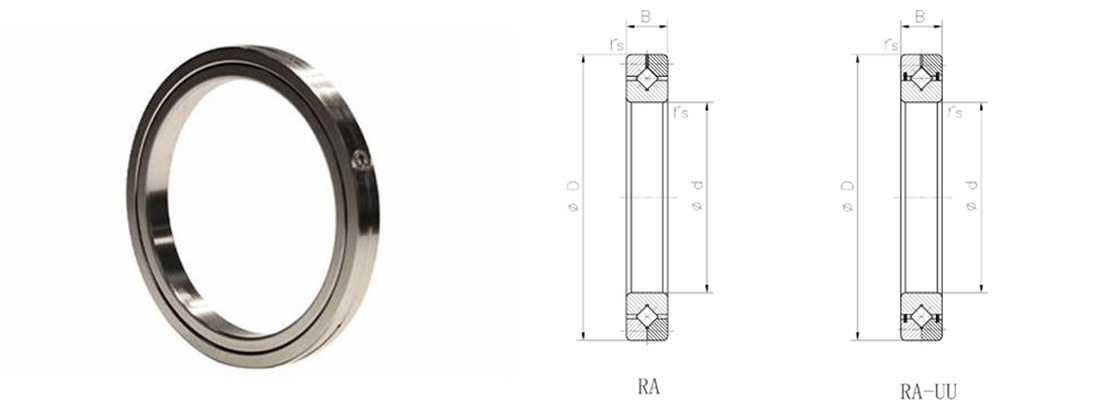

RA Cross roller bearings are designed to offer an more compact type of RB series crossed roller bearings. The bearing features all attributes of RB series crossed roller bearings while conserving space with thin inner and outer ring. Because of its vertical arrangement of rollers in a 90°V, the bearing is capable to carry loads in all directions at the same time: radial,axial and moment loads. Thus, the bearing housing and presser flange can be lightweight. It is optional for areas where the swiveling units need to be lightweight. Combined with its high rigidity, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, medical equipment, measuring instruments, rotating parts of manipulators, precision rotary tables, etc.

Series Introduction

RA thin type is a small and light weight bearing with a very thin wall thickness.

It carries heavy loads. Therefore, the bearing housing and pressure flange can be light weight. It is being used in rotary locations such as in robot hands. The outer rings of the RA thin type are separable and fixed by special rivets.

Applications

Industrial Robotic arm, Reducer drive
Precision Turntable, NC rotary table
Rotation part of Machine tools
Inspection instrument, Medical equipment
Aviation equipment, Military radar, etc

CRBH Series

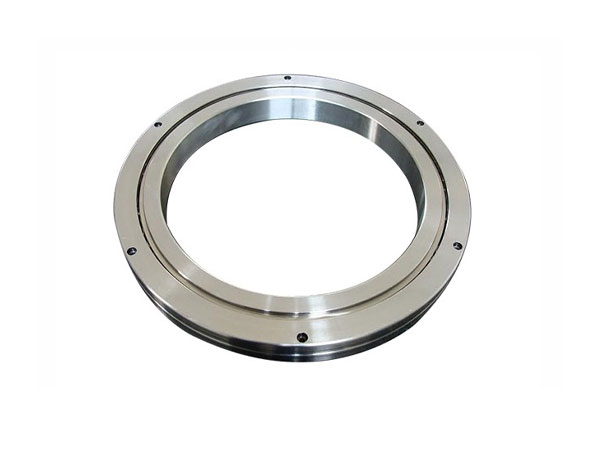

Crossed Roller Bearing CRBH Series

Bearing Type	Dimension				Shoulder Height		Basic Dynamic Load Rating		Weight
	Dimension				Shoulder Height		(Radial)		Weight
	Inner Ring d	Outer Ring D	Width	r	da	Da	Cr	Cor	Kg
	Inner Ring d	Outer Ring D	B	min	da	Da	kN	kN	Kg
CRBH 2008 A	20	36	8	0.3	24	31	2.91	2.43	0.04
CRBH 2508 A	25	41	8	0.3	29	36	3.12	2.81	0.05
CRBH 3010 A	30	55	10	0.3	36.5	48.5	7.6	8.37	0.12
CRBH 3510 A	35	60	10	0.3	41.5	53.5	7.9	9.13	0.13
CRBH 4010 A	40	65	10	0.3	46.5	58.5	8.61	10.6	0.15
CRBH 4510 A	45	70	10	0.3	51.5	63.5	8.86	11.3	0.16
CRBH 5013 A	50	80	13	0.6	56	74	17.3	20.9	0.29
CRBH 6013 A	60	90	13	0.6	66	84	18.8	24.3	0.33
CRBH 7013 A	70	100	13	0.6	76	94	20.1	27.7	0.38
CRBH 8016 A	80	120	16	0.6	88	112	32.1	43.4	0.74
CRBH 9016 A	90	130	16	0.6	98	122	33.1	46.8	0.81
CRBH 10020 A	100	150	20	0.6	110	140	50.9	72.2	1.45
CRBH 11020 A	110	160	20	0.6	120	150	52.4	77.4	1.56
CRBH 12025 A	120	180	25	1	132	168	73.4	108	2.62
CRBH 13025 A	130	190	25	1	142	178	75.9	115	2.82
CRBH 14025 A	140	200	25	1	152	188	81.9	130	2.96
CRBH 15025 A	150	210	25	1	162	198	84.3	138	3.16
CRBH 20025 A	200	260	25	1	212	248	92.3	169	4
CRBH 25025 A	250	310	25	1.5	262	298	102	207	4.97

Product Features

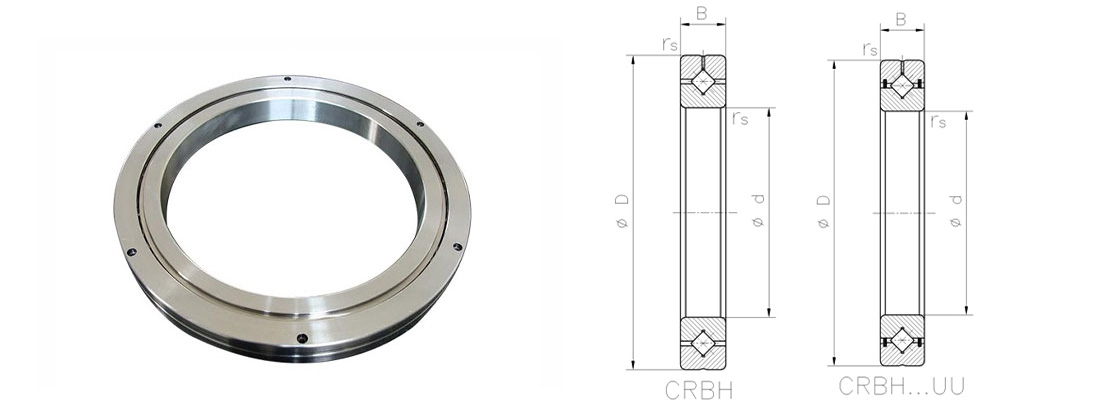

The inner ring and outer ring of the CRBH series crossed roller bearings are all integrated structure, their overall sizes are completely same with RB and RE series crossed roller bearings, but its outer ring have hole type structure for installing bearing rollers, so both the inner ring and outer ring can achieve high rotation accuracy, thus both the bearing inner ring and outer ring is available to rotating.

CRBH series crossed cylindrical roller bearings is mainly used for: rotation part of the machine tools, CNC rotary table, medical equipment, aviation equipment, precision turntable, etc.
